CONNECT
WBC-2S.1
- Flexible connectivity
- AirPlay has never been simple*
Plays music from any of your Apple devices. - Supports 2.4Ghz Wide Band Range*
Stable and Reliable Streaming. - Prefer more personal?
Its bluetooth v5.0 will get along with your device very well.

PLAY
Clean and silky sound
Polypropylene Woofer for uniform sound dispersion while keeping the bass bang and texture. The 1″ Silk Dome Tweeter gives mellow and smooth treble extensions. Creating a sound image of your favourite vocal and instruments.

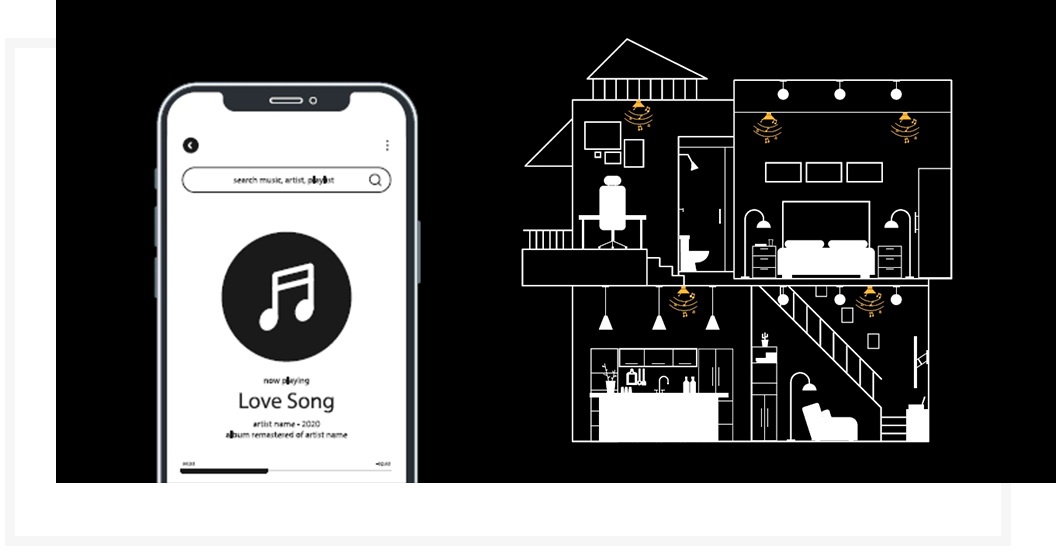

Play your music with Legacy Player.
- Stream your tune 24/7
- Play and stream your playlist in a loop even when you’re not at home.
- Play at its own time
Play your tunes from


INDULGE
It doesn’t stop at two*

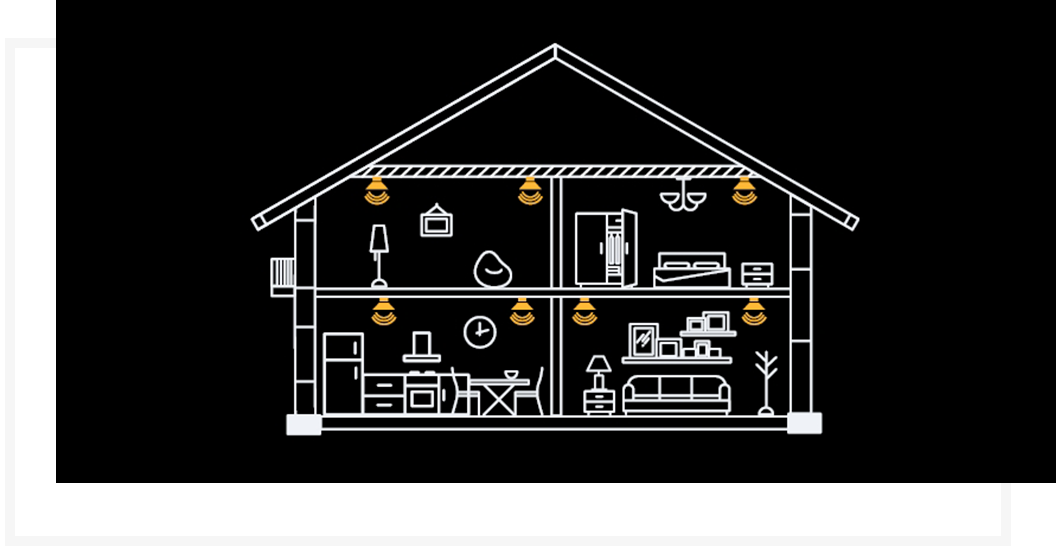

- Multi-room streaming.*
- Play your favourite tunes into every space at the same time or play your tune differently at each space. *
*multi-room streaming require Smart Sonix application to be able to control

TECHNICAL SPECIFICATIONS
Model: WBC-2S.1
Product Category
- Active Stereo Wi-Fi Ceiling Speaker
Driver Specifications
- Speaker Type: 2-Way Coaxial
- Woofer Type: Polypropylene Cone
- Woofer Size: 6.5”
- Tweeter Type: Silk Dome
- Tweeter Size: 1” (25mm)
- Tweeter Pivoting/Angled: Yes
- Frequency Response: 70Hz-20kHz
- Sensitivity(1M/1W): 87dB
- Nominal Impedance : 8Ω
Connectivity
- Stereo Analog Audio Connector (RCA) x 1
- Wi-Fi 802.11b/g/n (2.4GHz)
- Bluetooth V5 .0
Package Contents
- 1x Active Ceiling Speaker + 1x Passive Ceiling Speaker
- 1x Power Supply Adaptor
- 1x 3m Speaker Cable
- 1x Cutting Template
- 1x Instruction Manual
Speaker Specifications
- Dimensions: Ø233x105mm (Ø9.2″x4.1″)
- Cutout Size: Ø209mm(Ø8.2″)
- Mounting Depth(without dry wall): 100mm (3.9”)
- Basket Material: ABS + Elastic Paint
- Grill Type: Magnetic Round Grill
Electronic Specifications
- Amplifier Output Power: 2x30W into 8Ω
- Power Supply: DC 24V/2.5A
- Bluetooth Transmission Distance: 10m (32.8ft)*
- Wi-Fi Transmission Distance: 80m (262.5ft)*
Color
- Speaker: Black
- Grill: White
*Actual specifications may vary depending on installation condition, consult technical support for more accurate estimation.
